Intelligent Access
Brose’s success story began with the “crank drive for retractable windows". Today, we are the world market leader in the development and production of mechatronic systems for vehicle doors and tailgates. In the vehicle exterior sector, Brose stands for comfort and safety. We have transferred this expertise to side doors, enabling a new comfort experience when entering a vehicle. Our wide-ranging portfolio includes all necessary components – from the electrically opening lock and side door drive to the electronics and sensors for collision and pinch protection.
Door system with plastic carrier plate
- Scalable product and integration scopes (window regulator rails, soundbox, fasteners)
- Carriers available in fiber-reinforced plastics
- Endless fiber-reinforced plastics reduce weight in the vehicle and have a positive effect on crash behavior in the door
Compact module
- Plastic window regulator with wet-dry room seperation function as a module
- Weight savings of up to 2 kg per vehicle compared to conventional component design
- Integration of interfaces for further components such as loudspeaker, crash sensor and door control unit possible
Window regulator drive with integrated electronics
- Scalable electronic functional scope at different levels, e.g. sensors, auto-down, anti-trap feature, PWM control
- Variants from 8 to 14 Nm for wet and dry side applications
- Weight from 270 g
Cable window regulator
- Single or double-guided window regulator with steel, aluminum or plastic guide rails
- Short development times thanks to high degree of standardization
- Modular solutions for customer-oriented setting concepts for window regulators for frameless doors
Door control unit
- Control of drives for window regulators with anti-trap feature, side mirror and latch
- Control with standardized interfaces to the window regulator drive
- Control of side door drives
- CAN or LIN interface
Power liftgate drive
- Modular principle for high robustness in all models and load ranges
- Design as a one or two-sided spindle drive or push rod possible
- Installation in the rainwater duct or under the roof
- Integration of brake and overload clutch possible
- Noise level below 45 dB(A)
- Mechanical power from 33 to 43 W
Deck lid tension spring drive
- Utilization of standard components for cost savings
- Modular kit approach for high robustness and flexibility
- Small package
- Design with internal torque support
- Plug & Play solution for manual decklids

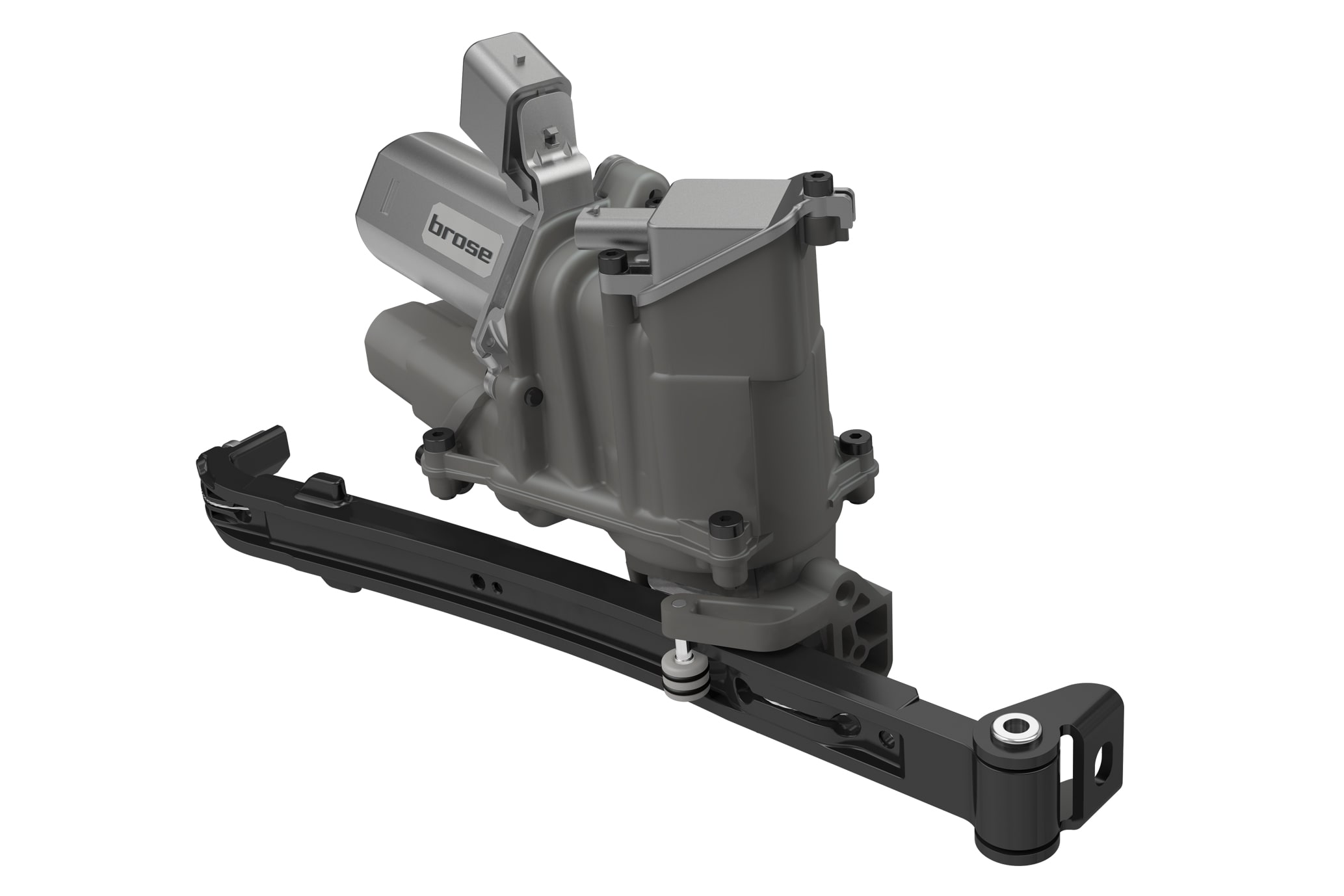

Servo Drive Linear with Intergrated Electronic Control Unit
- Power opening and closing of side doors with infinite door stop
- Smooth manual door operation due to an integrated servo assist
- System integrated Brose electronics as wll as Brose own software
- Compact design for universal use (front and rear)
Servo Drive Linear with Sensor Adapter
- Power opening and closing of side doors with infinite door stop
- Side Door Drive is controlled via external door control unit
- Compact design for universal use (front and rear)
- Manual door operation possible due to an integrated servo assist
Door drive with extended functionalities
The Brose system comprises:
- drive
- obstacle detection sensor
- periphery monitoring radar sensor
- control unit
- open-by-wire latch with power cinching unit
Power Drop Gate drive with Sensor Adapter
- Power Opening and Closing of Drop Gates for Pick-up Trucks
- Durable and sealed drive unit with integrated overload protection
- Rugged design for long-lasting performance
- Quick installation with minimal adaptation required
- Suitable for both commercial and private vehicles
Power Drop Gate drive system for back door application
- Smooth power opening and closing in just 3 seconds
- Supports high gate weights, including standard and heavy-duty applications
- Design interfaces allow for easy drop gate removal
- Integrated electronics and latch expertise ensure optimized system performance
Free Wheel Drive
- Power opening and closing of even heavy doors in angled positions and on slopes
- Integrated variable door check with zero-current brake
- Attached to conventional structural interfaces, can thereby be offered as an optional feature
- Modular design for flexible use and shorter develompent periods
