Maximum performance, minimal noise

As the world leader for electric motors and drives in the 80 to 1000 watts range, we ensure that automated manual transmissions, steering and braking systems, engine cooling and HVAC units run perfectly. We power window regulators, seat systems and liftgates. We use this expertise to develop pioneering electronically commutated drives that offer significant benefits, including high efficiency levels, low weight, minimal package space and optimum electromagnetic compatibility. Overall, our motors lower fuel consumption per vehicle considerably and reduce CO2 emissions by up to 20 g per kilometer.

#
#
#

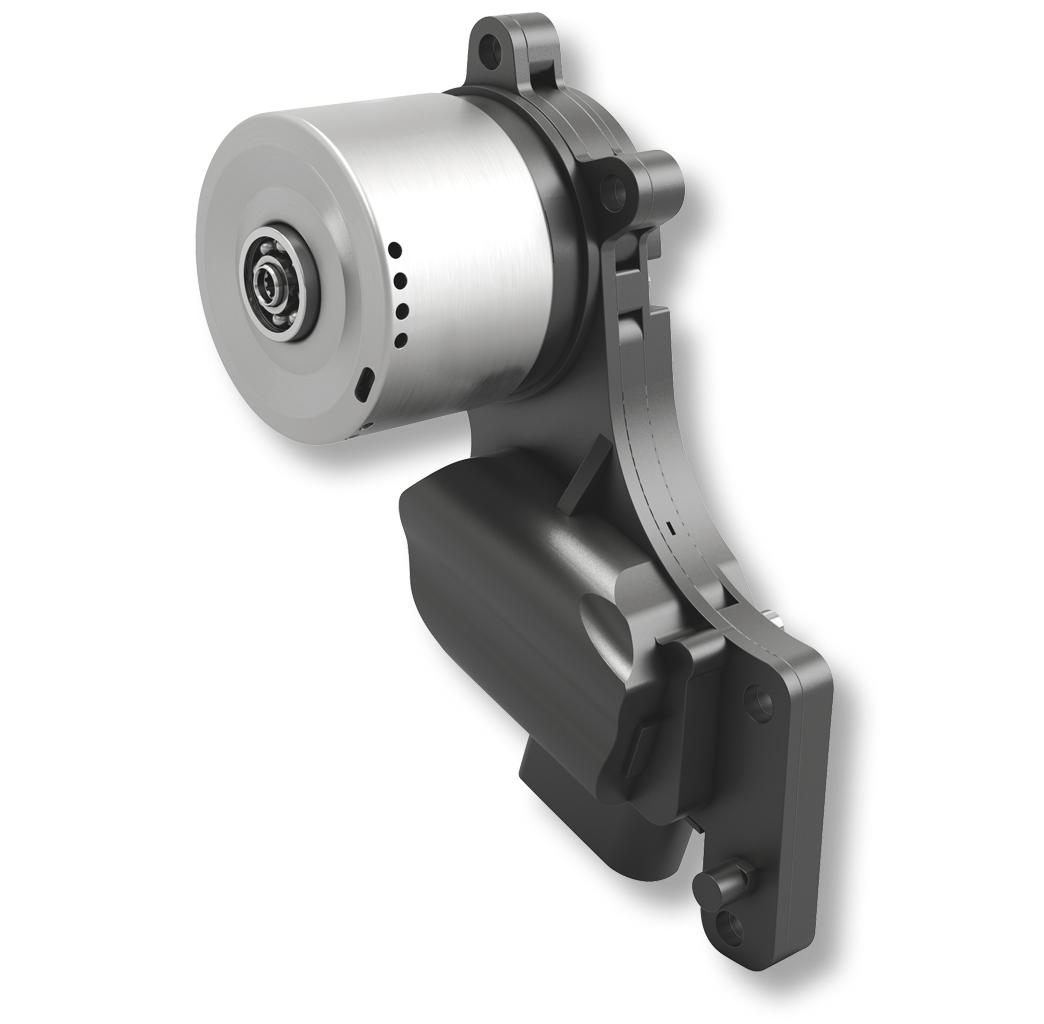

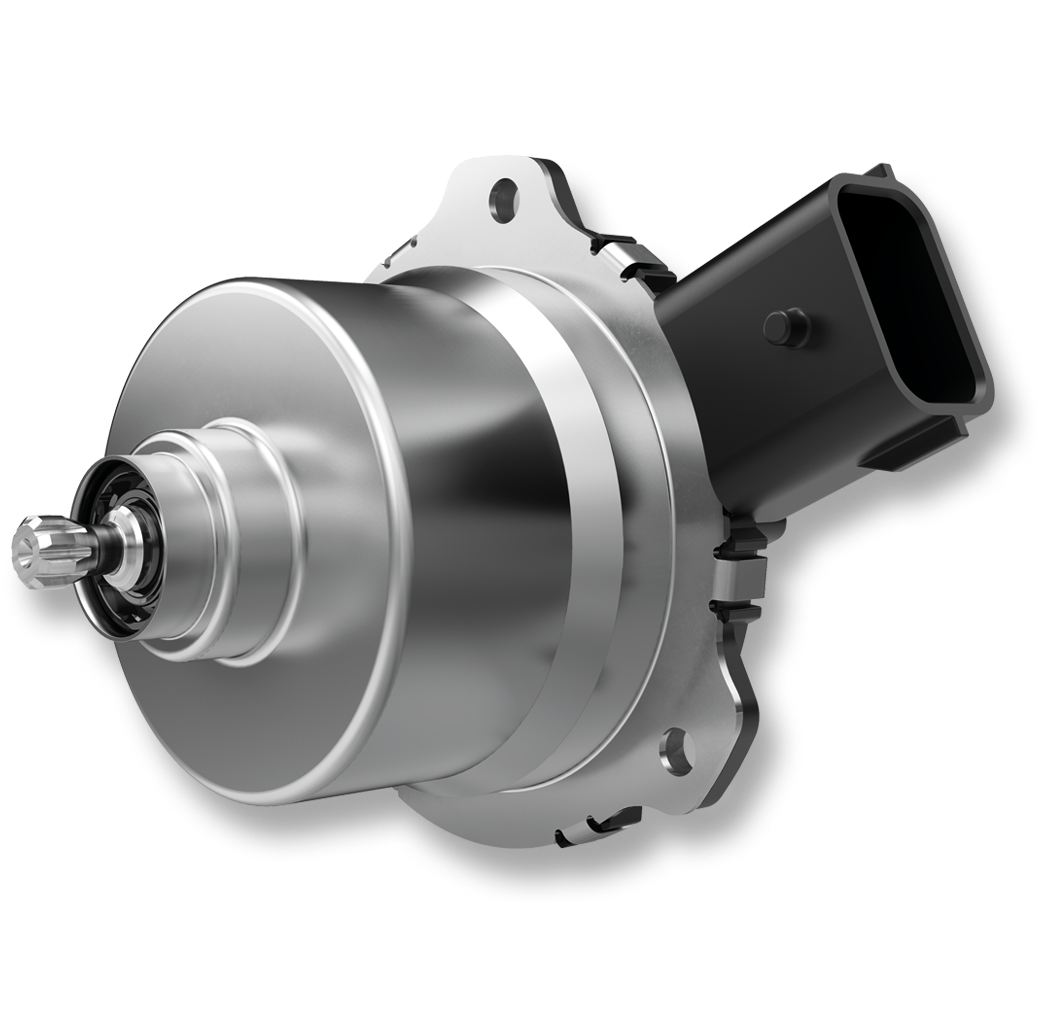

Drive for transmission applications

#

  • Electronic commutation
  • Power range from 150 - 700 W
  • For use in electromechanical and hydraulic applications for dual-clutch transmissions and transfer cases as well as for the oil supply
  • Optional system solutions with sensors or integrated electronics

#
#
#
#

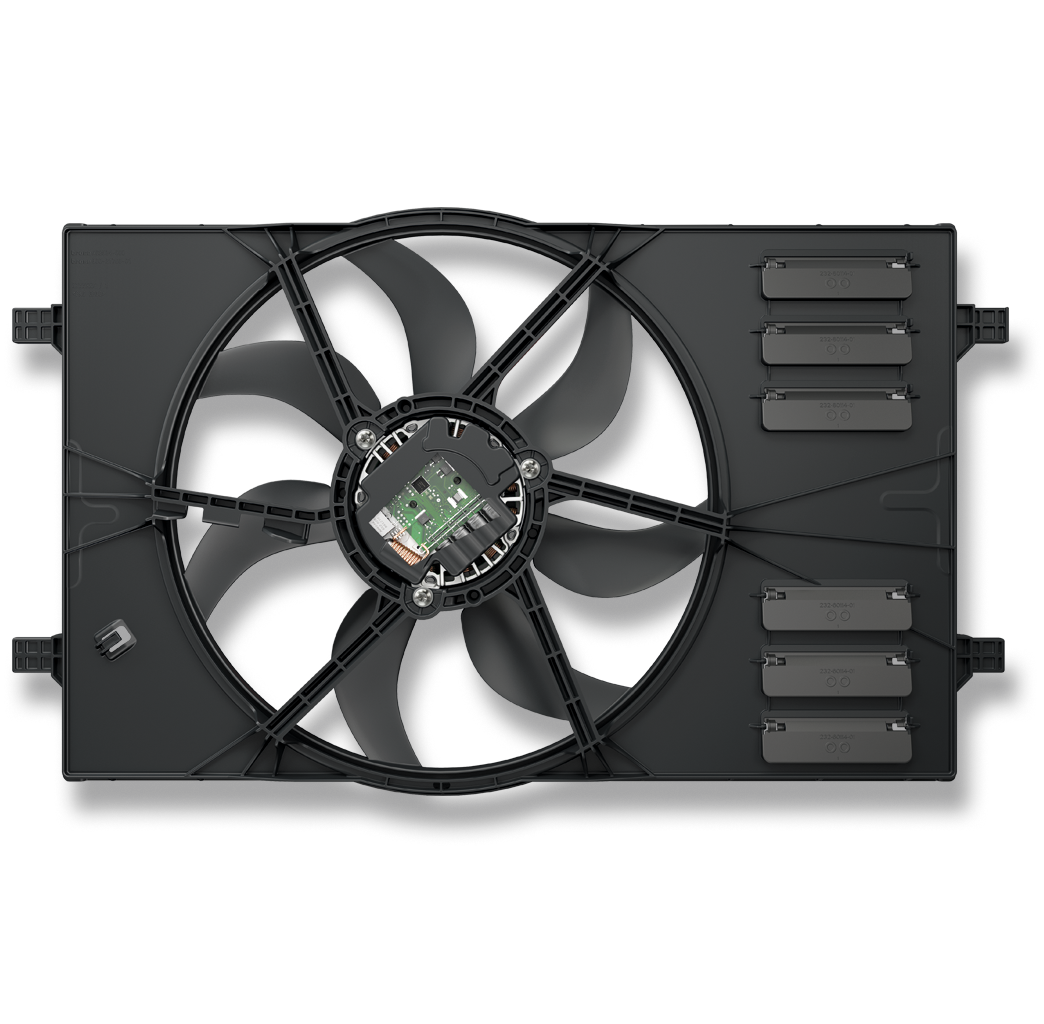

Cooling fan module

#

  • Mechanically and electronically commutated drives
  • Power range from 200 - 1,000 W
  • Modular design due to single shroud concept
  • Integrated electronics for variable speed control
  • Optional for 48-volt application

#
#
#
#

System for on-demand control of cooling air supply

#

  • Separate control of flaps with central, fail-safe actuator and integrated electronics
  • Shortens warm-up phase of combustion engine by up to one minute

#
#
#
#
#
#
#
#

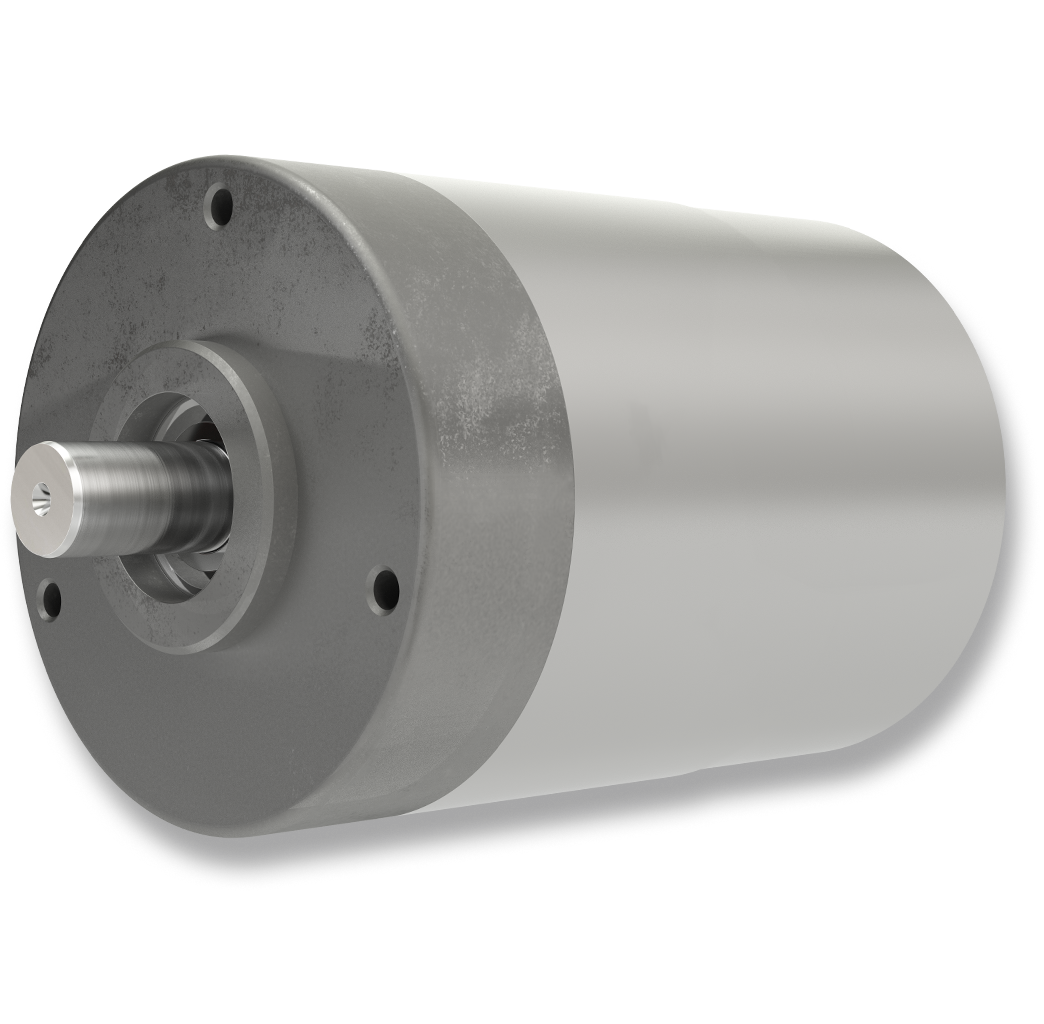

Steering motor

#

  • Electronic commutation
  • Power range from 250 - 900 W
  • Column drives for small cars, mounted directly on the steering column (left in photo)
  • Pinion drives for compact cars, attached to the steering pinion
  • Rack drives for mid-size and premium vehicles (right in photo)

#
#
#
#
#

Drive for electronic braking systems (EBS)

#

  • Standardized motor modular system
  • Power range from 130 - 580 W
  • 25% weight savings compared to the previous generation
  • Corrosion protection and sealing (brake fluid)

#
#
#
#
#

Electronic cooling fluid pump

#

  • Electronic commutation
  • Integrated electronics with scalable electric power input of 400 - 900 W
  • Cost-effective due to ferrite magnets
  • Designed for 48 V (900 W), optional 12 V (400 W)

#
#
#
#
#

Lightweight HVAC blower with integrated electronics

#

  • Electronic commutation
  • Power range 250 - 350 W
  • Electromagnetic compatibility level 5 due to inner rotor technology
  • Noise behavior < 40 dB (A)

#
#
#
#
#
